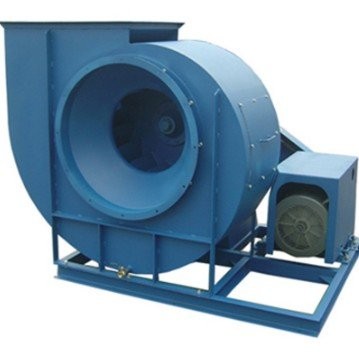

CENTRIFUGAL EXHAUST BLOWER:-
Our centrifugal blowers are widely appreciated for their excellent performance as these have been able to deliver efficiency up to 85% and above. We can provide these in various material of construction. This fan can be operated at temperatures up to 800°F. Industrial Fans can also supply centrifugal fans and heavy duty fans to handle corrosive gases, abrasive elements. The centrifugal exhaust blower can be operated by directly driven or driven by a coupling or a belt. Made using superior quality stainless steel, mild steel & frp. lining.

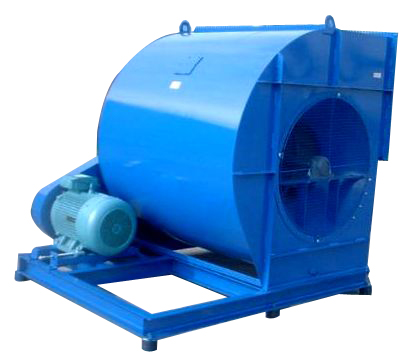

DOUBLE INLET DOUBLE WIDTH (DIDW) FAN.
Our centrifugal blowers are widely appreciated for their excellent performance as these have been able to deliver efficiency up to 85% and above. We can provide these in various material of construction viz. Mild steel, Stainless steel, Aluminum, (MS-F-RP) lined, MS rubber lined, or as per specific requirements of our esteemed clients. Our centrifugal blowers can be availed at competitive prices in two configurations Single Inlet Single Width (SISW) and Double Inlet Double Width (DIDW) with split casing as an optional feature
We offer high quality backward curved didw fans, high performance and low maintenance have won them a lot appreciation from across the global. This fan can be operated at temperatures up to 400°F. DIDW Fans and heavy duty fans to handle corrosive gases, abrasive elements & lowest sound levels. The DIDW FAN can be operated by belt drive. Made using superior quality stainless steel, mild steel .
Technical Features:-
Volume : 1,700-3,50 ,000 m3/hr
Pressure : 40-250 mm WGP.
Fan dia : 12”-72”
Volume : 1,700-3,50 ,000 m3/hr
Pressure : 40-250 mm WGP.
Fan dia : 12”-72”
F. D. Fans a Unique combinations of volume and pressure with high zone of flexibility are available. We manufactures a wide range of the F.D fans/ blowers with various designs of impeller and which have high efficiency dynamically balanced. Which are suitable for supply and exhaust of air, gas, fume, dust and for material handling in various industrial process.These fans & blowers are available in mild steel, stainless steel with frp. lined and hard faced Rds.

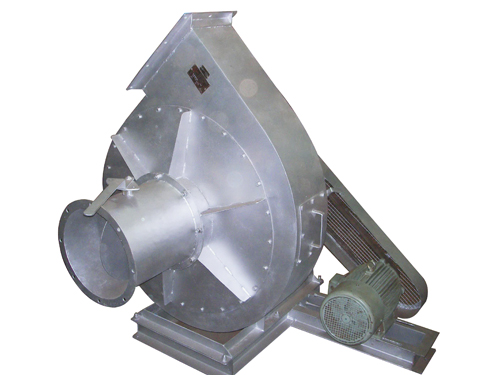

FORCED DROP (FD) FAN:-
Technical Features:-
Volume : 500 m3/hr- 2,50,000 m3/hr.
Pressure : 50 mm WGP-1400 mm WGP.
Fan dia : 12”-72”
Volume : 500 m3/hr- 2,50,000 m3/hr.
Pressure : 50 mm WGP-1400 mm WGP.
Fan dia : 12”-72”

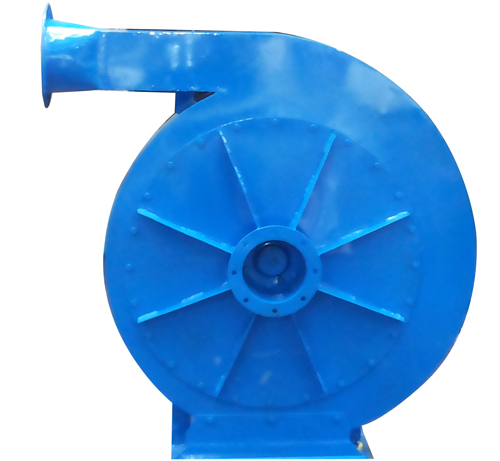

HIGH PRESSURE BLOWER:-
we are engaged in providing High Pressure Blower for our valuable clients. The high pressure blower can be providing in SISW. Industrial high pressure blower and heavy duty fans to handle corrosive gases, abrasive elements. The high pressure blower can be operated by directly driven or driven by a coupling or a belt. Made using superior quality stainless steel, mild steel .
Technical Features:-
Volume : 250 - 10,000 m3/hr.
Pressure : 30 - 1,530 mm WGP.
Fan Dia : 8” - 72”
Volume : 250 - 10,000 m3/hr.
Pressure : 30 - 1,530 mm WGP.
Fan Dia : 8” - 72”
